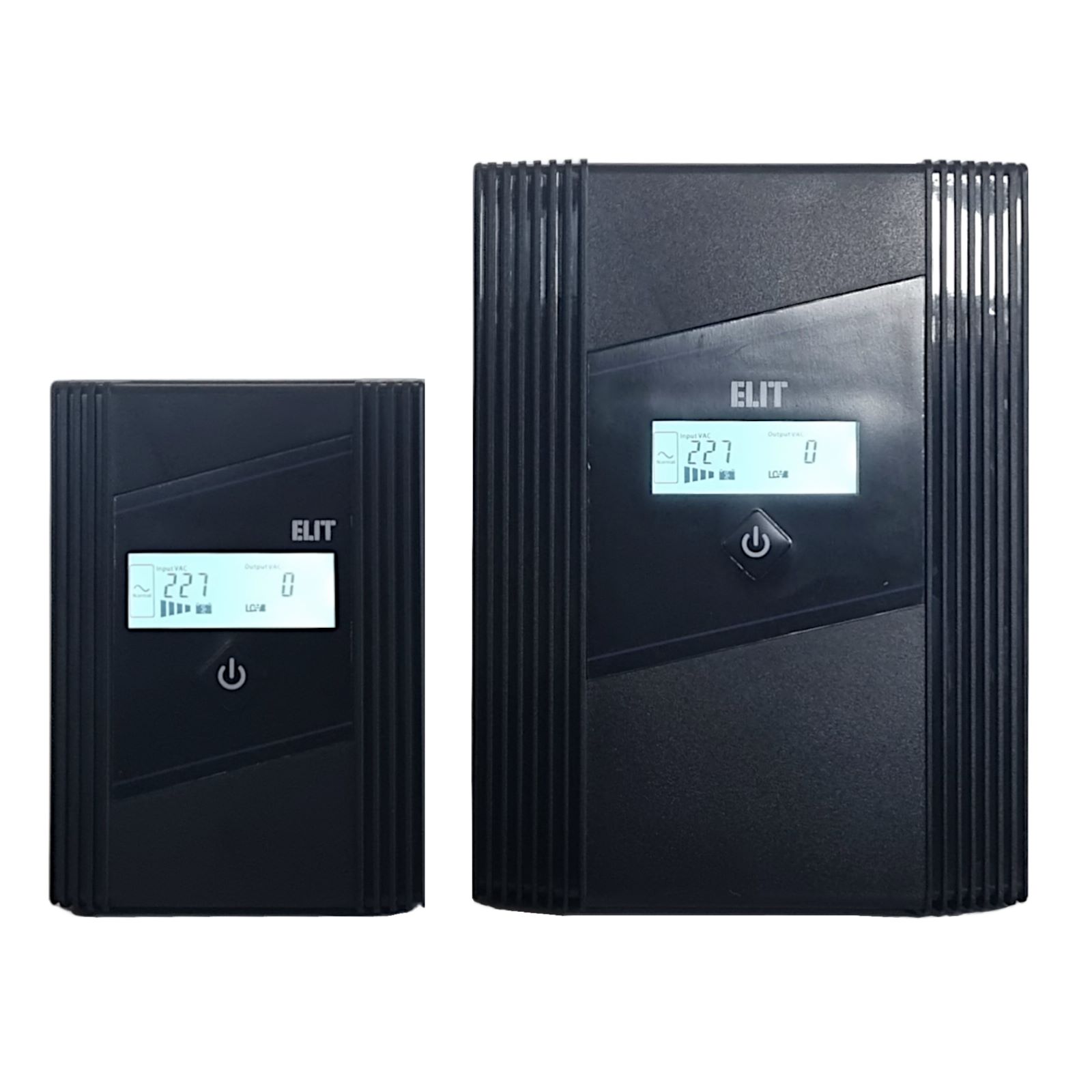

The PCSX series UPS is a VI-SY-133 pseudo sinusoidal equipment designed to provide power to all electronic loads such as personal computers, DVRs, gaming, TV peripherals such as satellite and digital terrestrial receivers, and small appliances.
The PCSX Series equipment is available in models from 450VA to 2000VA.
SINGLE PHASE LINE INTERACTIVE STEP WAVE UPS, PCSX II LCD SERIES
Description
In the presence of mains, the line to the users is stabilized in amplitude by the AVR, Automatic Voltage Regulation device and filtered by overvoltage by the EMI filters. In the absence of mains, the UPS feeds the load with a pseudo-sine wave power through the energy taken from the batteries. Free downloadable software for monitoring events and shutting down the connected PC in complete safety to protect data and hardware.
- Microprocessor control.
- AVR output voltage stabilization.
- Wide input voltage tolerance w/o battery mode.
- Battery charging even when UPS is off.
- Possibility of battery ignition, Cold Start.
- Intelligent battery management.
- LCD UPS Panel.
- Automatic battery test.
- USB communication interface.
- Downloadable monitoring software with power history.

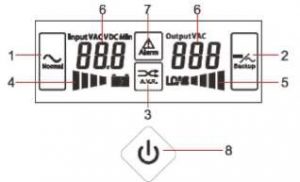

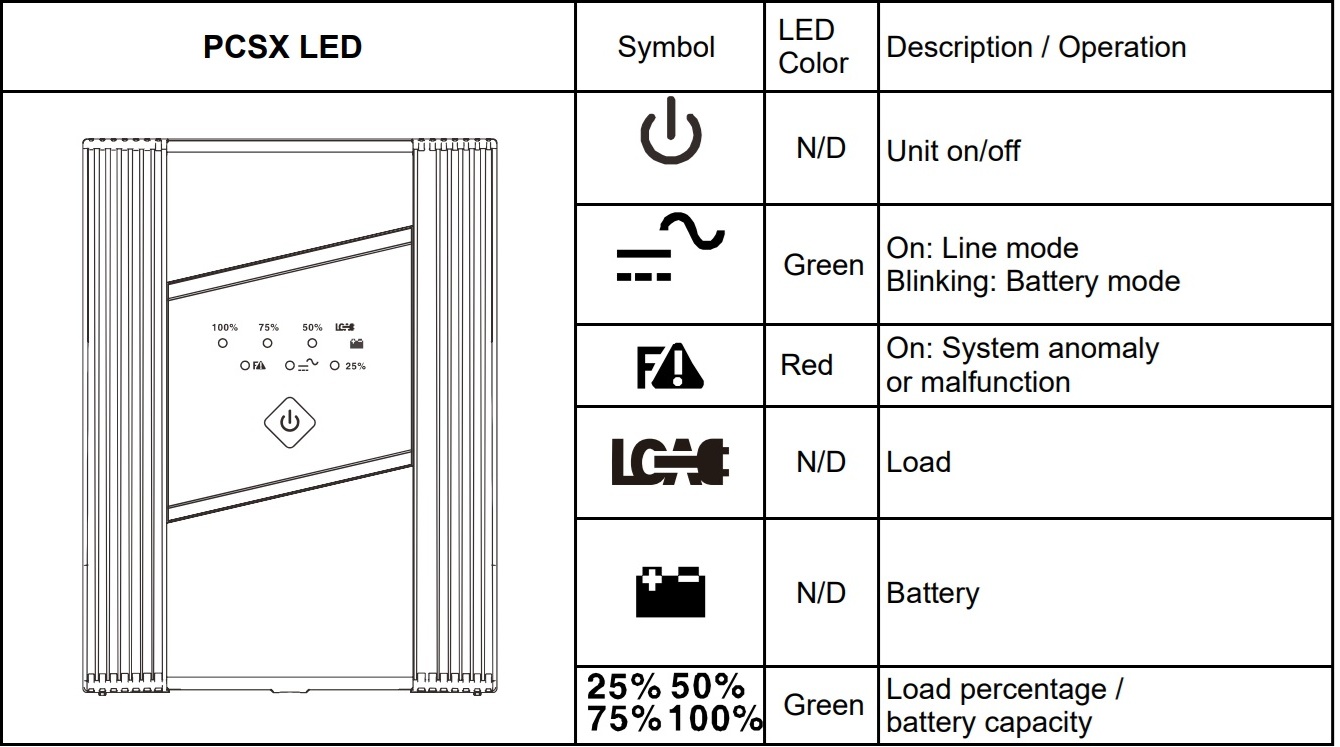

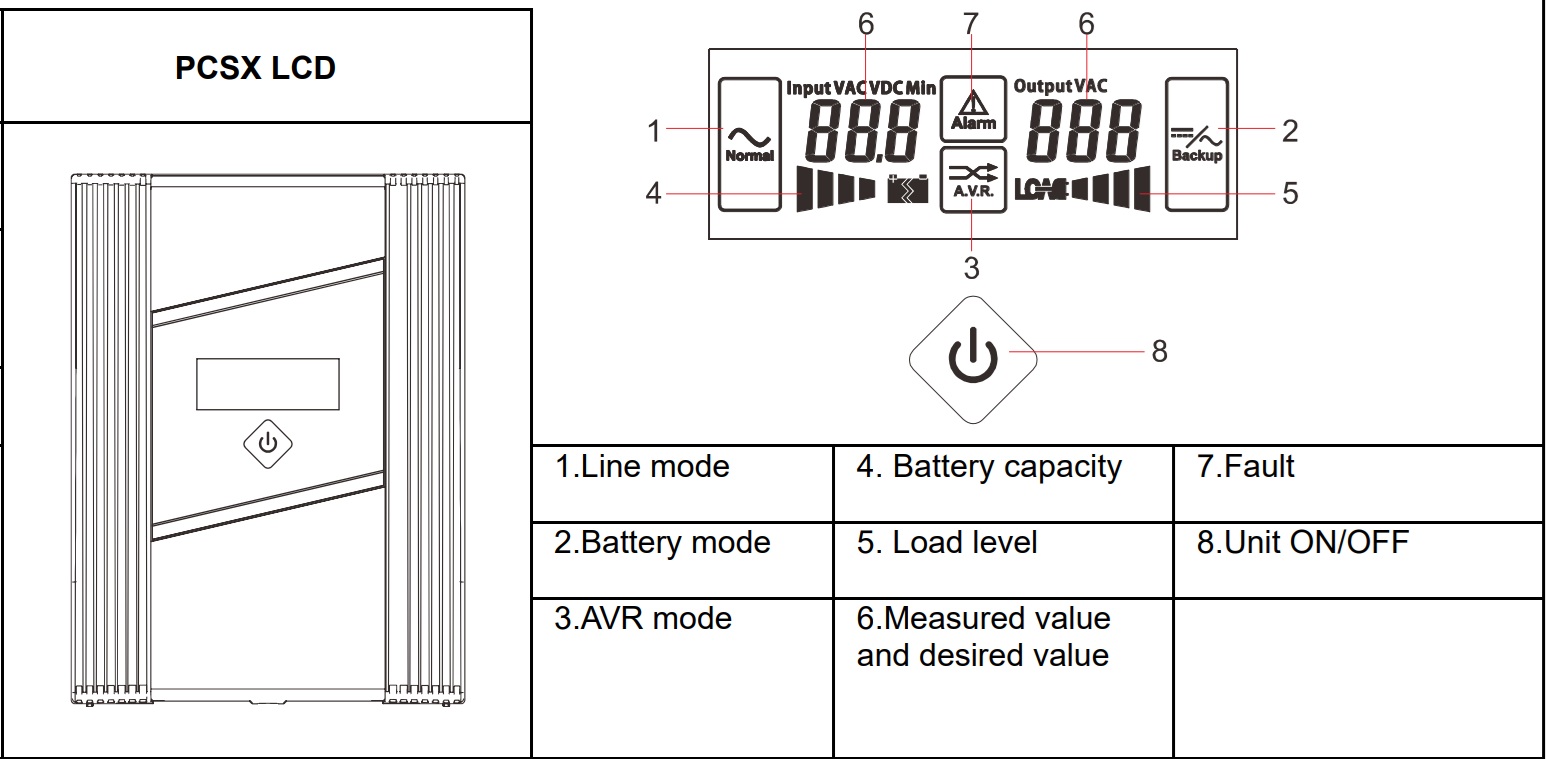

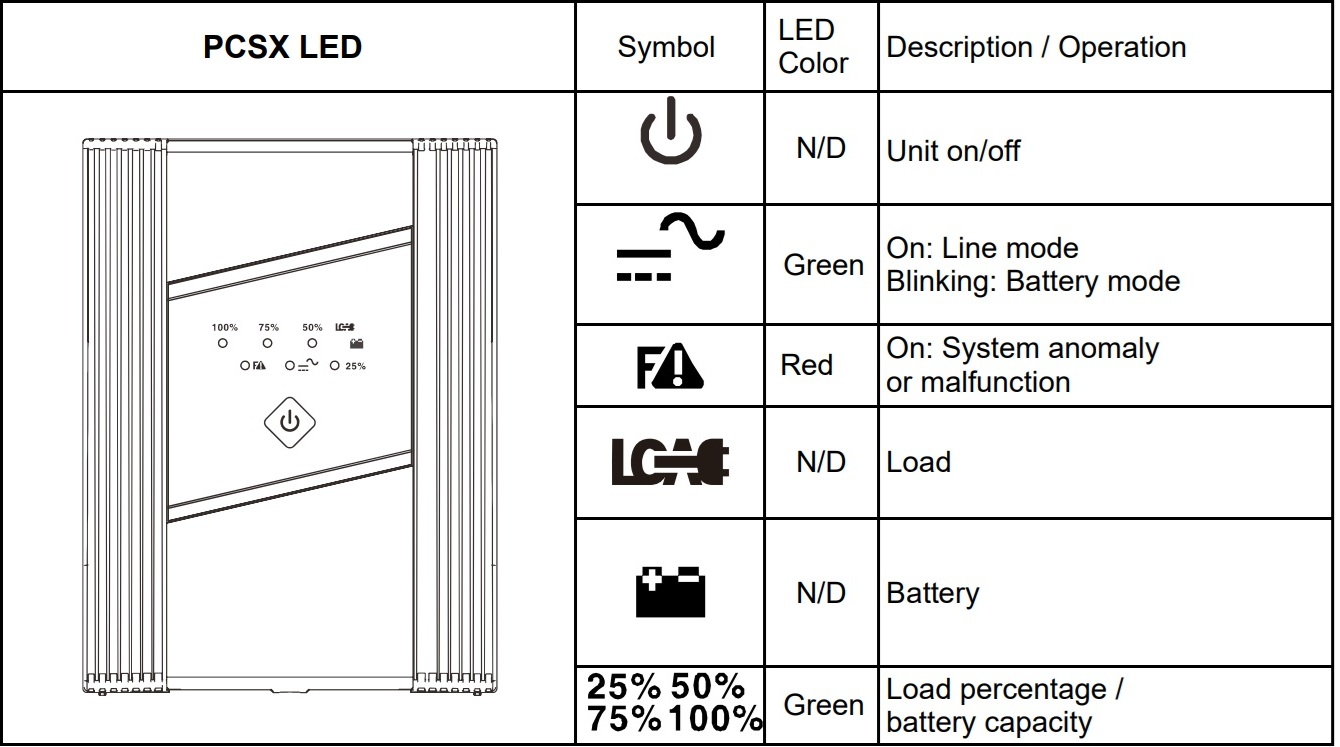

Warnings and front panel controls:
- Mains mode
- Battery mode
- AVR mode
- Battery capacity level
- Load level applied
- Input/output parameters
- Fault
- Output on/off switch
-

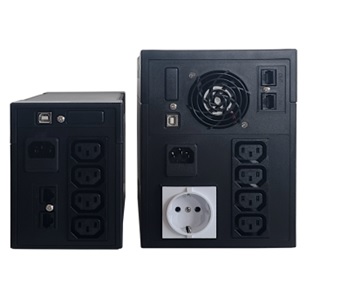

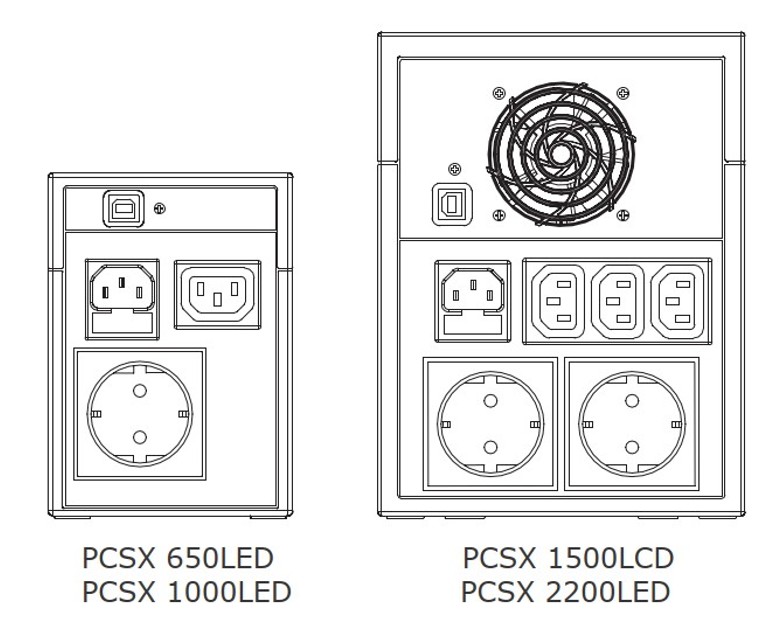

- Input cable;
- Outlet 1x IEC-320-C13 10A +1x Schuko (PCSX 450-650-800LCD);
- Outlet 3x IEC-320-C13 10A +2x Schuko (PCSX 1000-15000-2000LCD);
- RJ11/RJ45 filter MODEM LAN as option;
- USB interface.
